Ortofon: Concorde Music Hifi Cartridge

📌 LAB POINTS

• hi-fi listening cartridge series w/ classic Ortofon Concorde DJ cartridge silhouette for simple mounting on any S-shaped tonearm
• unlike the 2M series, Concorde Music styli are upgradeable across the line, enabling an upgrade path from Red -> Black LVB 250
• stylus differences: Red = Diamond-tipped Elliptical, =Blue = Nude Elliptical Diamond, Bronze = Nude Fine Line Diamond, Black  LVB 250 = Nude Shibata Diamond
• all styli mounted on premium Aluminum cantilevers except for Black LVB 250, which uses Boron cantilever for transparency, speed, and responsiveness
• ortofon exclusive rubber suspension, developed and produced in-house
• Silver-plated oxygen-free copper quad coils + split pole pins offer exceptional channel balance and separation
• easy install, no headshell required - designed to fit any S-shaped tonearm
• replaceable textured grip + tapered handle
• all styli are replaceable + upgradeable with the same concorde cartridge body
• note: for listening only, not for DJing, back-cueing, or scratching

"Based on Ortofon's signature Concorde DJ design, the Concorde Music Series brings a sense of ease to audiophile listening, from mounting to replacing & upgrading styli. The Concorde design is the easiest to install, no fussing with mounting or aligning. Conveniently upgrade your stylus when you're ready with no need for changing the cartridge itself, exclusive to the Concorde line." - TTL

🔑 KEY FEATURES

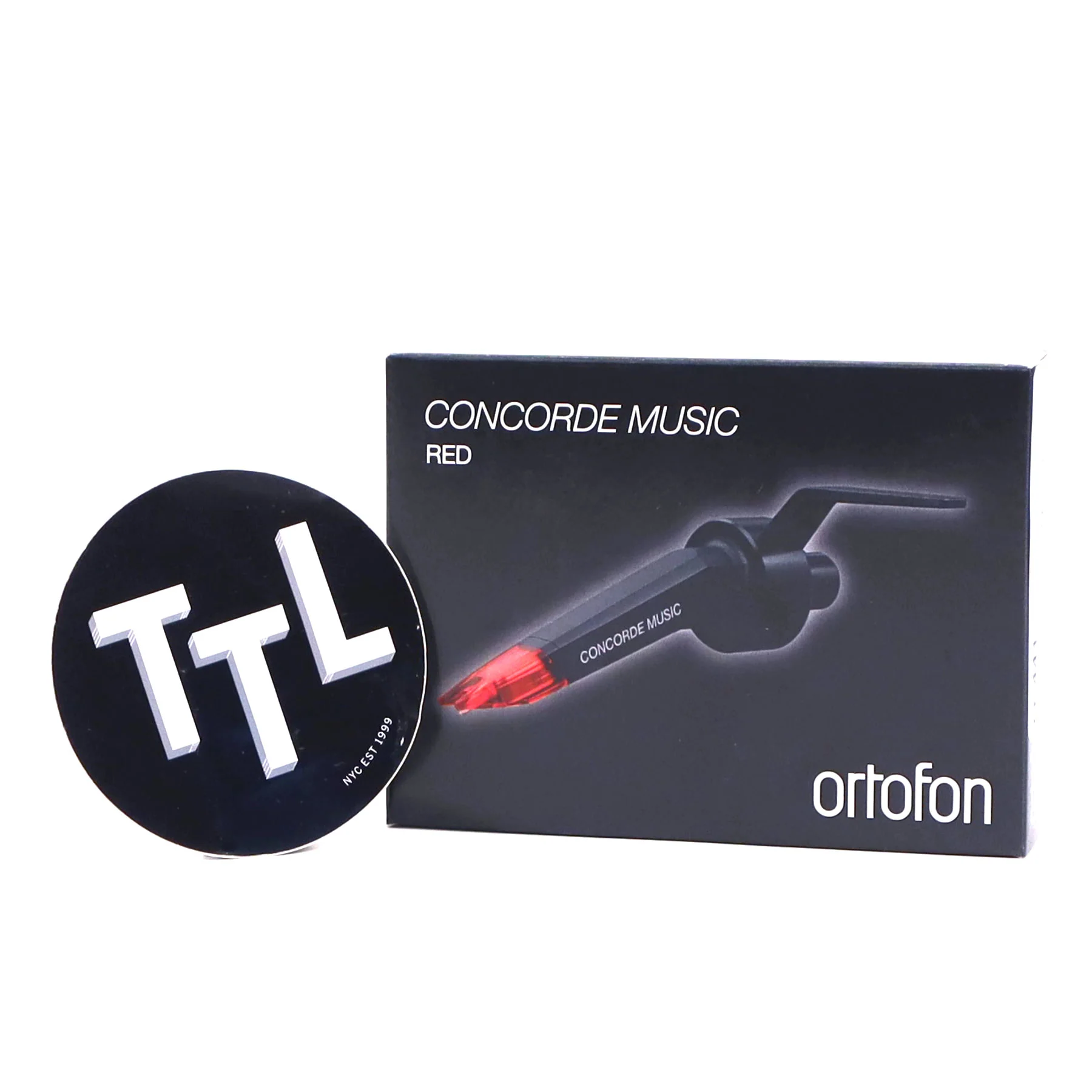

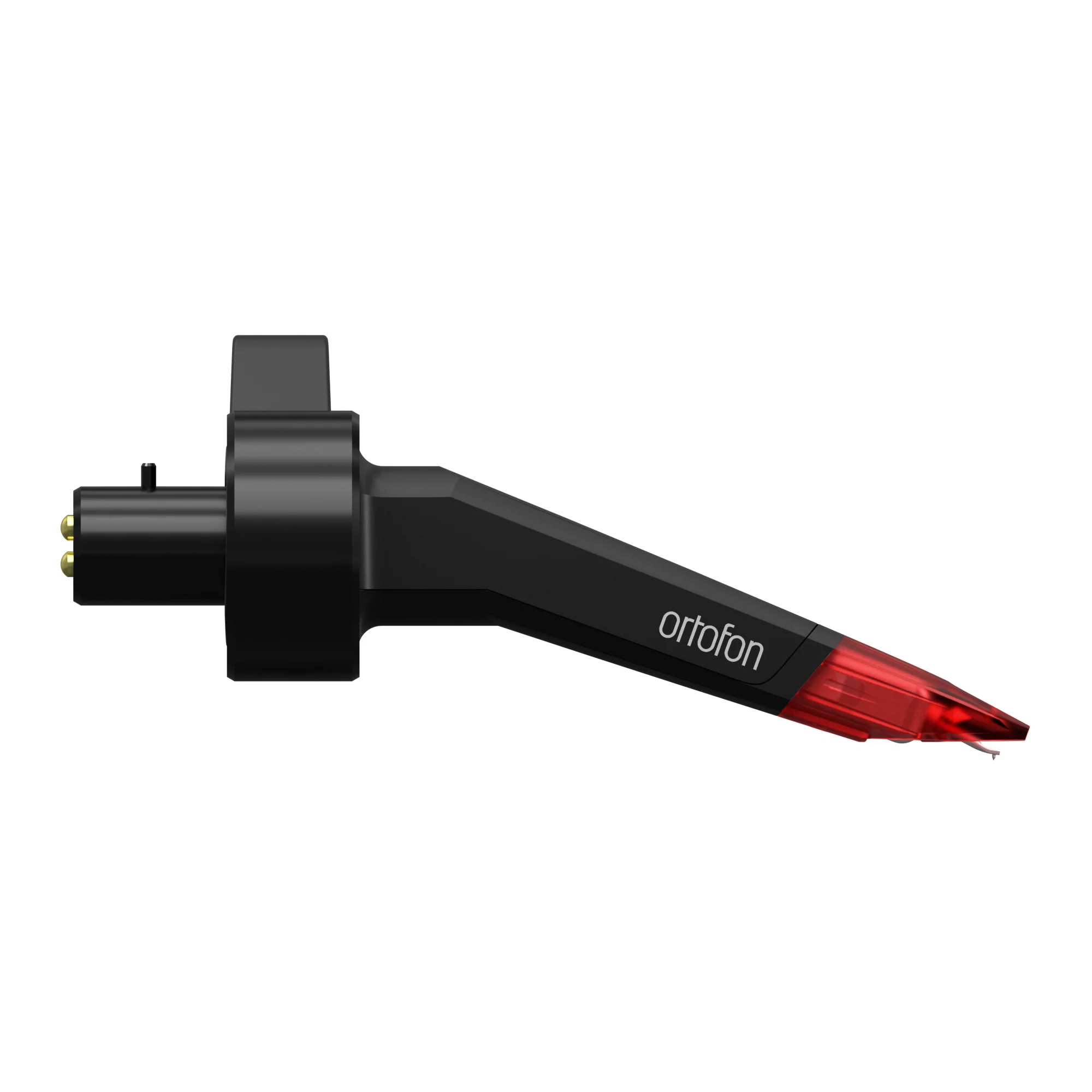

🟥 RED

• cartridge type: moving magnet for hi-fi listening
• stylus shape: elliptical
• stylus construction: bonded diamond
• cantilever material: aluminum
• output voltage: 6.0 mV
• frequency response: 20 Hz - 20,000 Hz
• channel separation: 22 dB
• tracking force: 1.8 g
• cartridge weight: 18.0 g
• replaceable stylus: yes
• upgradeable stylus: yes

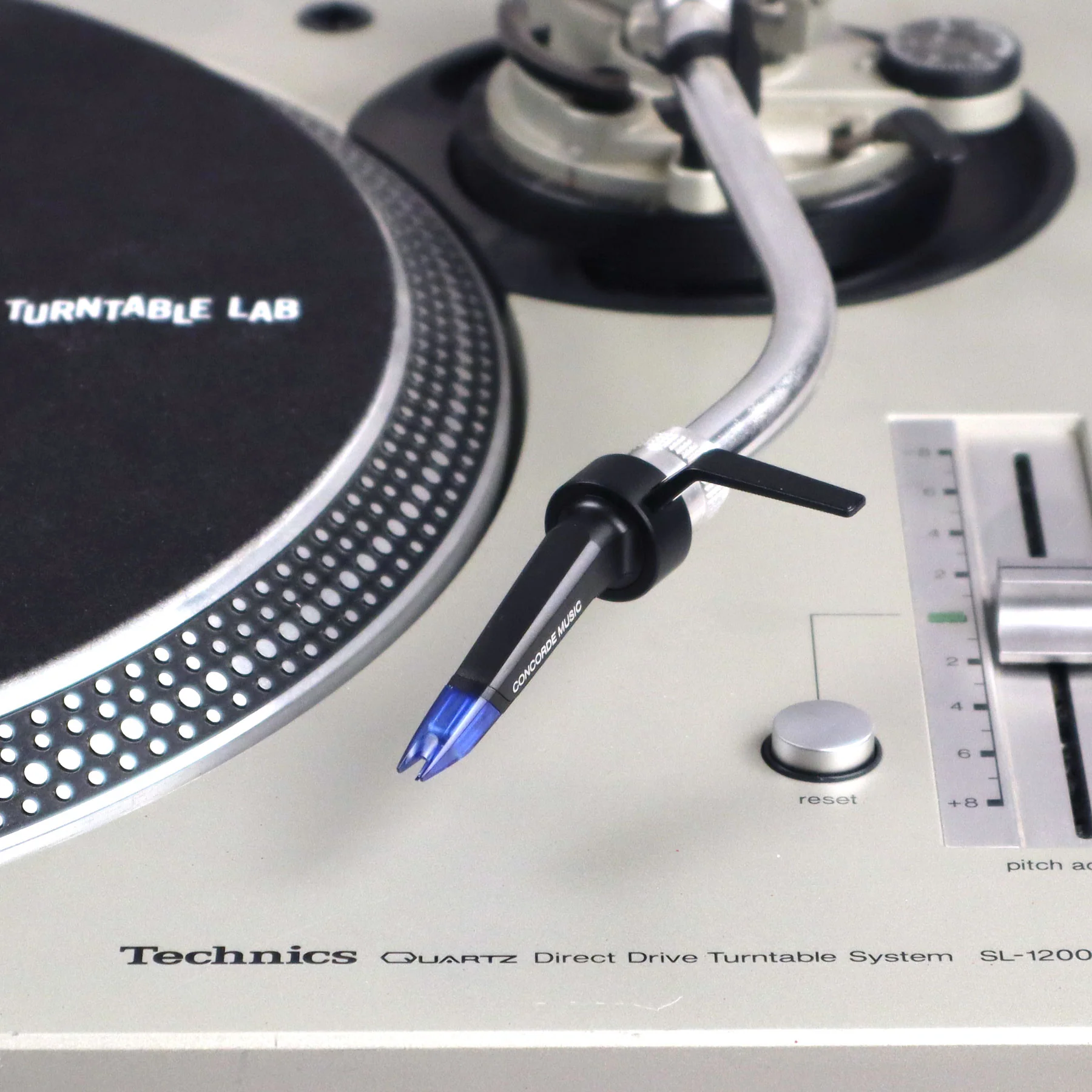

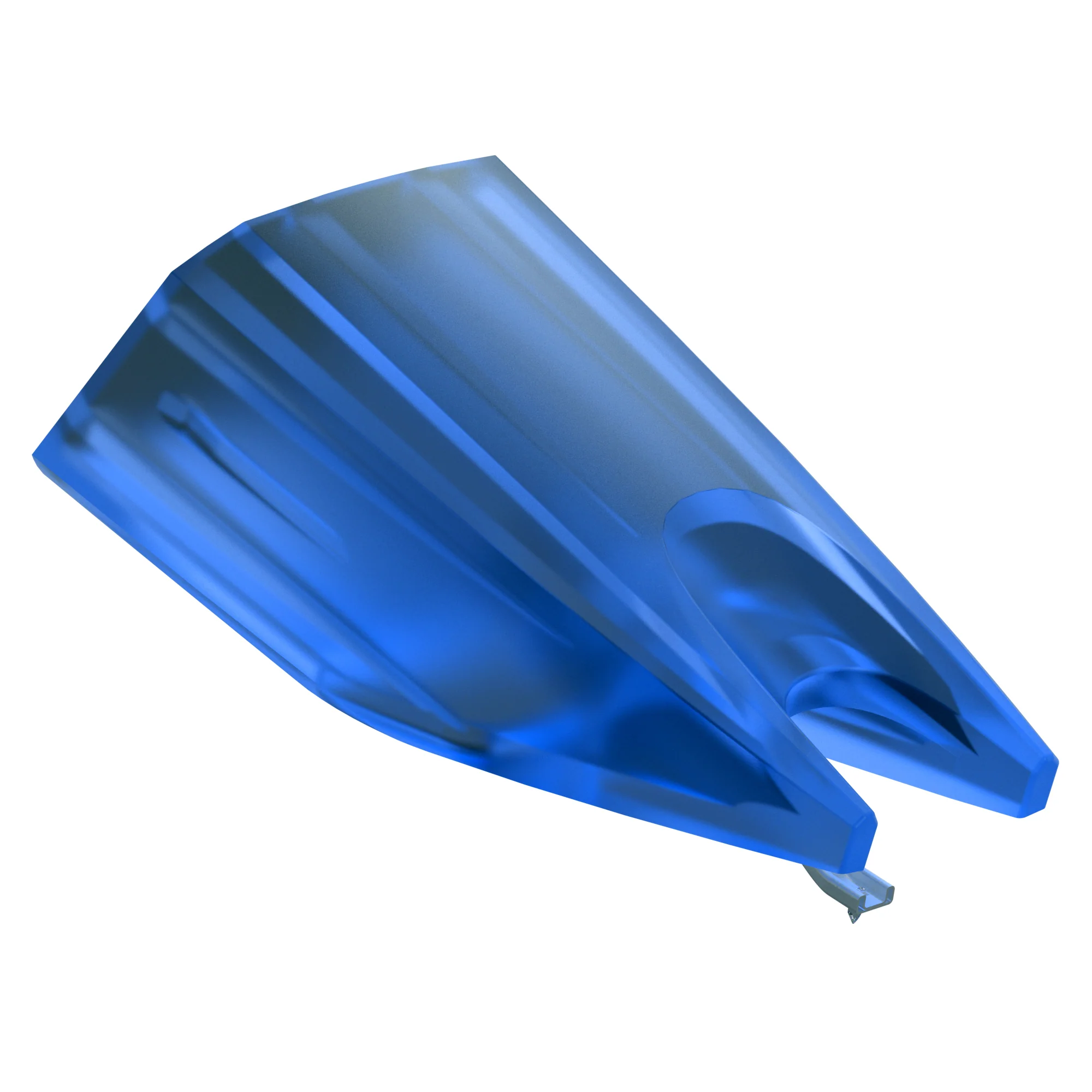

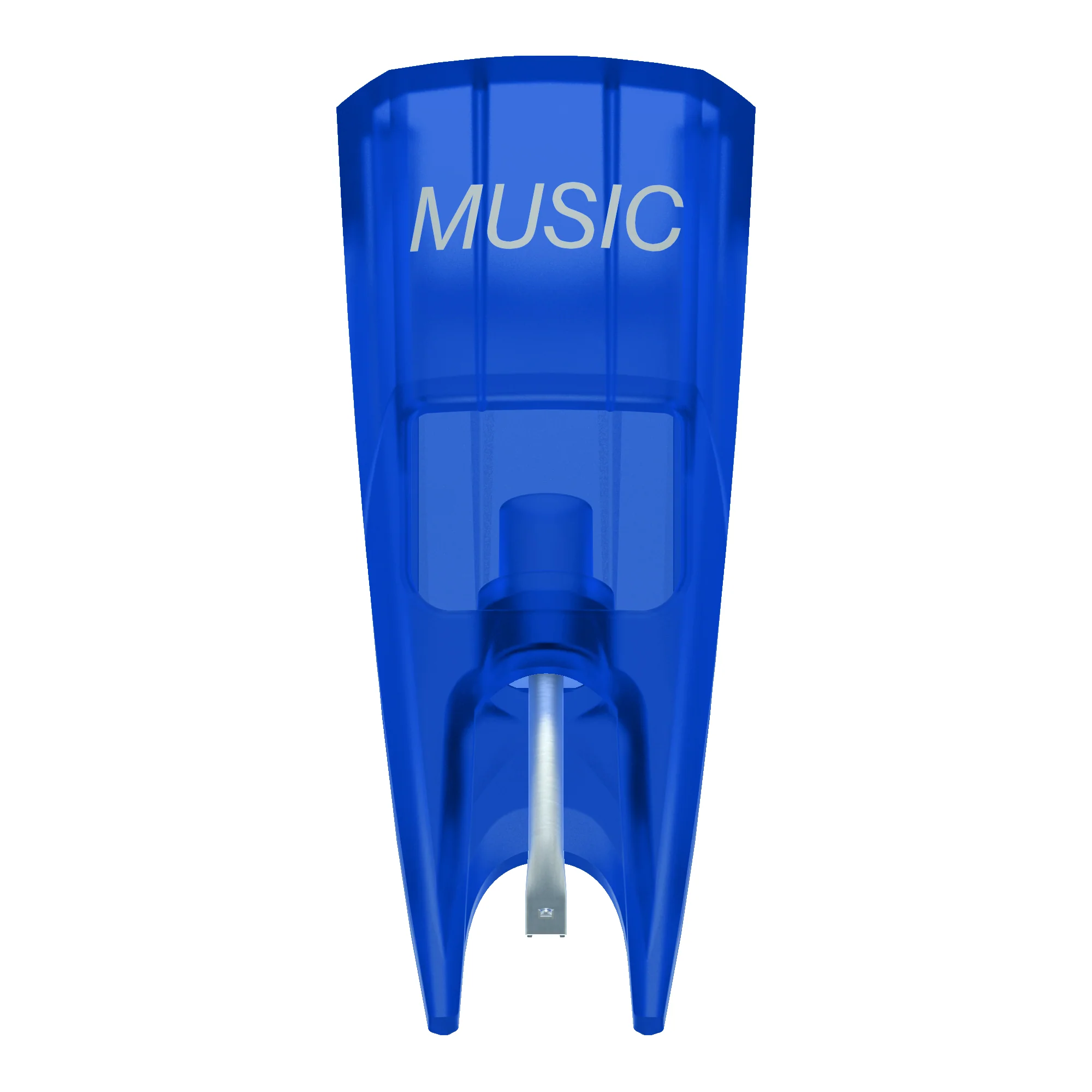

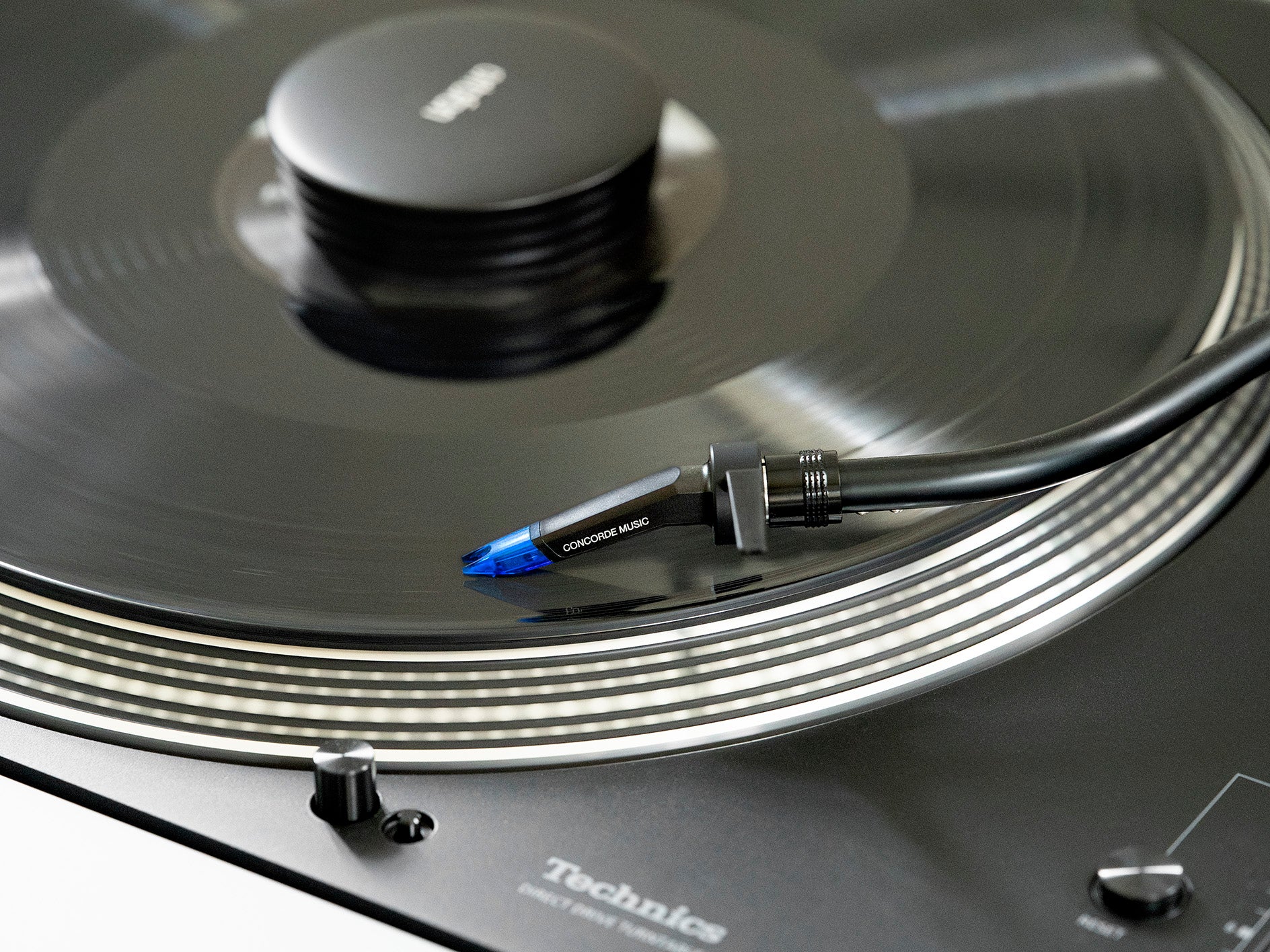

🟦 BLUE

• cartridge type: moving magnet for hi-fi listening
• stylus shape: elliptical
• stylus construction: bonded diamond
• cantilever material: aluminum
• output voltage: 6.0 mV
• frequency response: 20 Hz - 20 kHz
• channel separation: 22 dB
• tracking force: 1.8 g
• cartridge weight: 18.0 g
• replaceable stylus: yes
• upgradeable stylus: yes

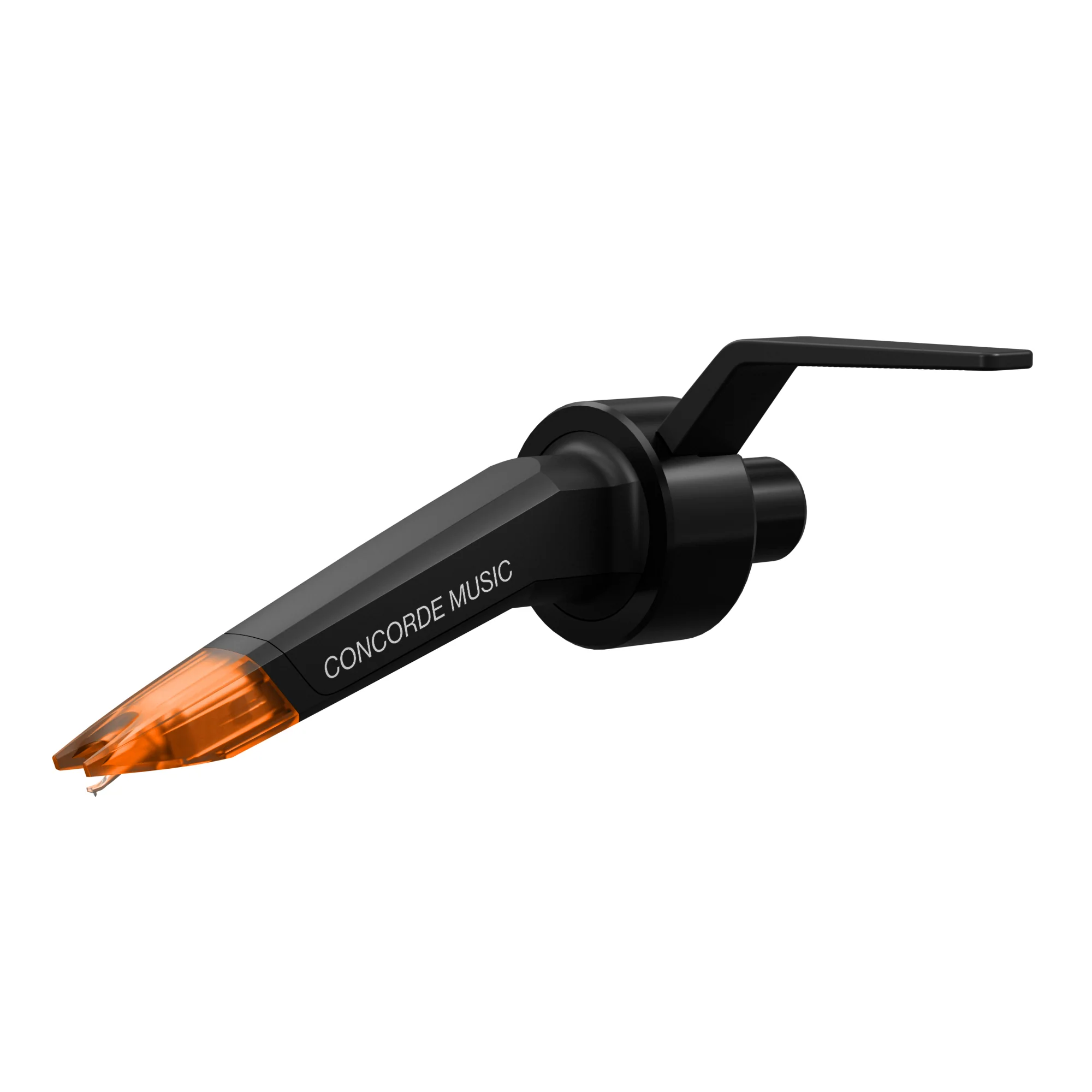

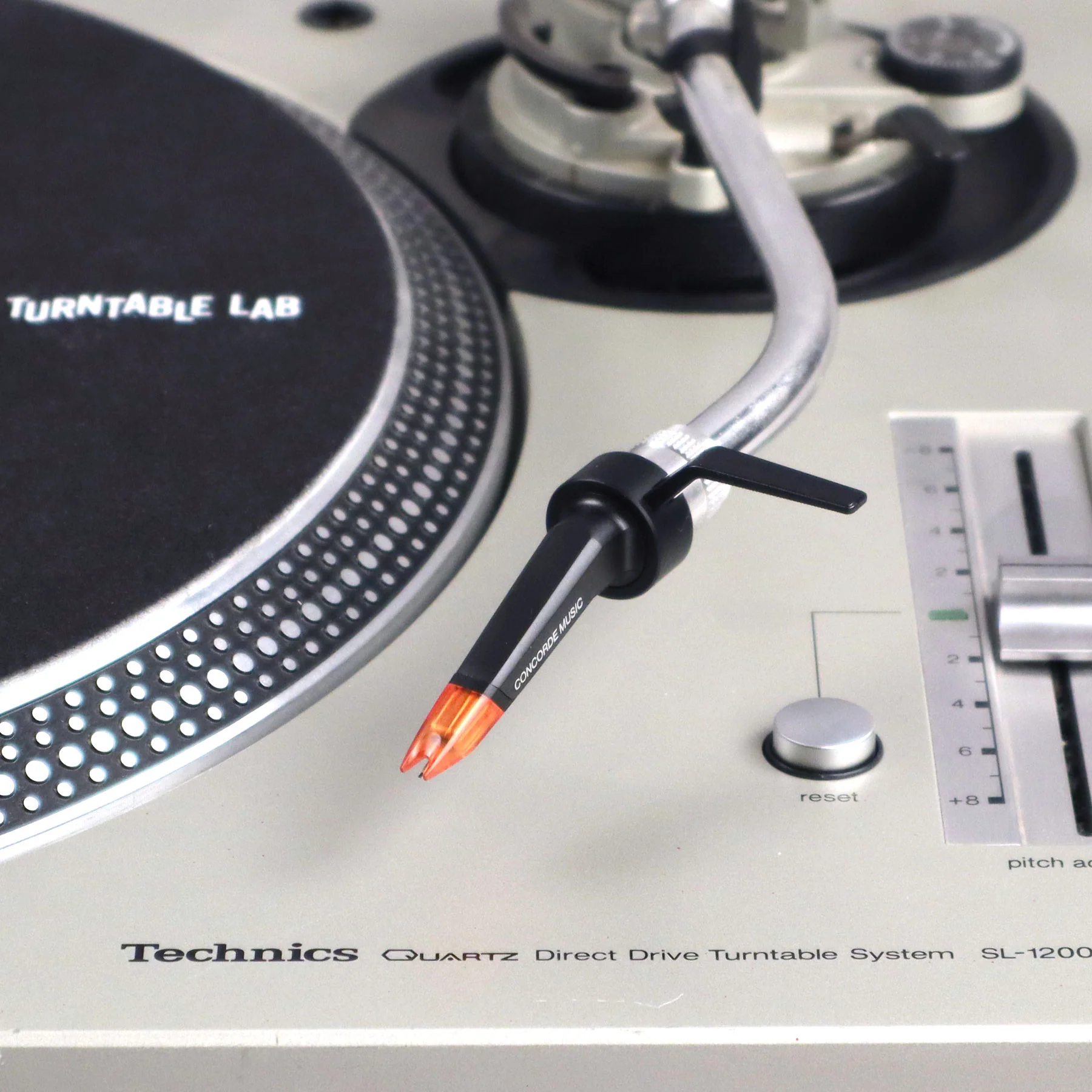

🟧 BRONZE

• cartridge type: moving magnet for hi-fi listening
• stylus shape: line contact
• stylus construction: nude diamond
• cantilever material: aluminum
• output voltage: 6.0 mV
• frequency response: 20 Hz - 20 kHz
• channel separation: 26 dB
• tracking force: 2.0 g
• cartridge weight: 18.0 g
• replaceable stylus: yes
• upgradeable stylus: yes

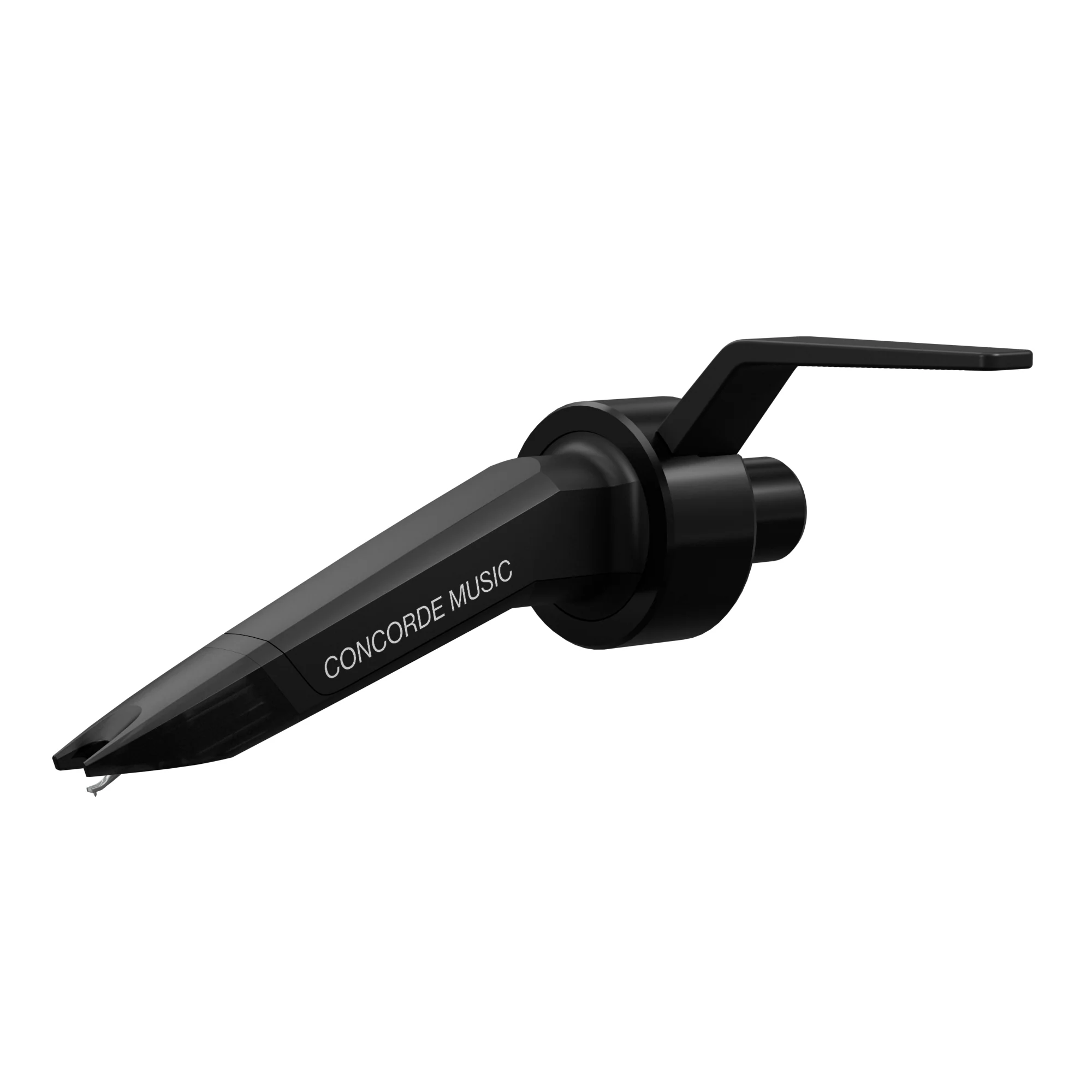

⬛ BLACK

• moving magnet for hi-fi listening
• cartridge type: moving magnet for hi-fi listening
• stylus shape: shibata
• stylus construction: nude diamond
• cantilever material: aluminum
• output voltage: 6.0 mV
• frequency response: 20 Hz - 20 kHz
• channel separation: 26 dB
• tracking force: 2.0 g
• cartridge weight: 18.0 g
• replaceable stylus: yes
• upgradeable stylus: yes

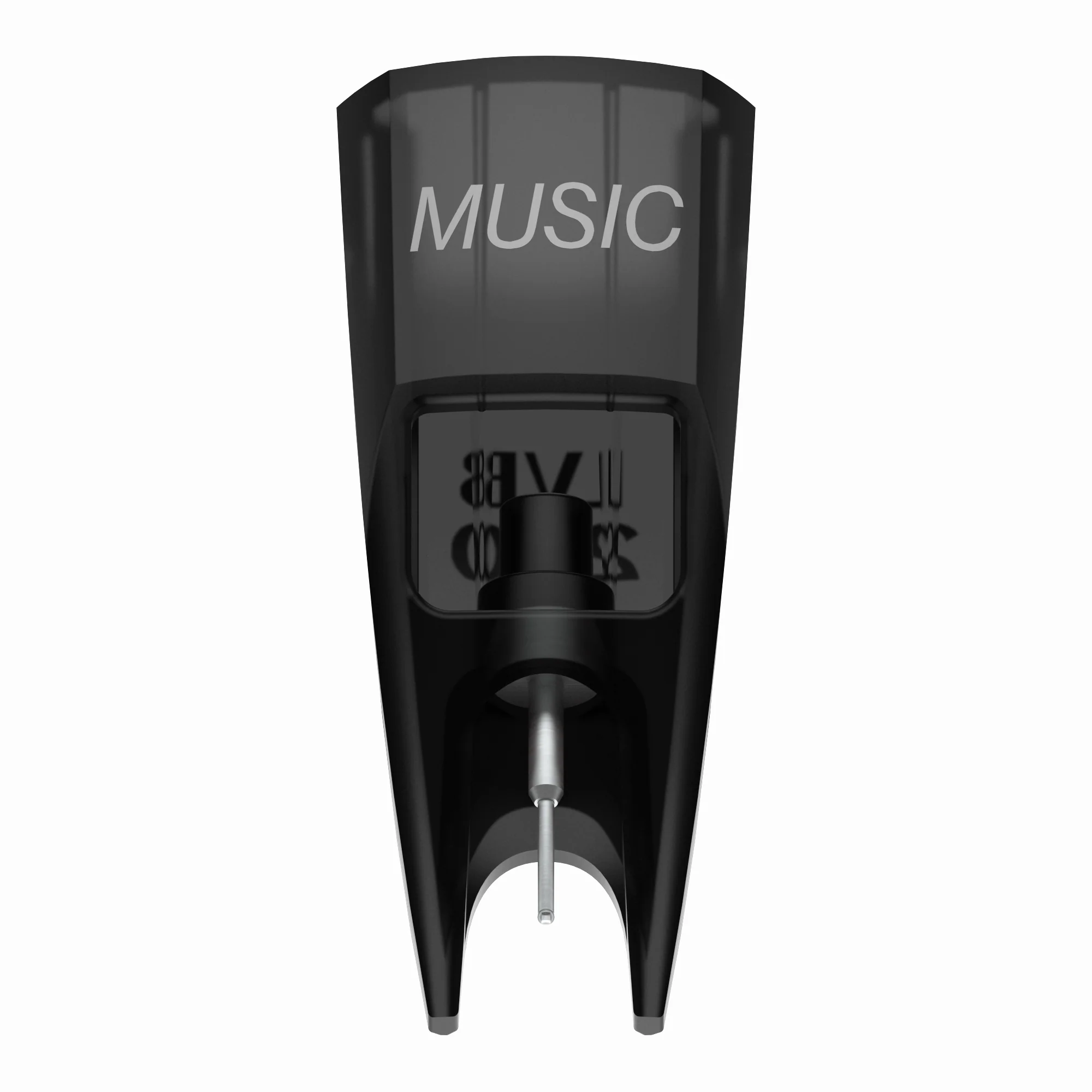

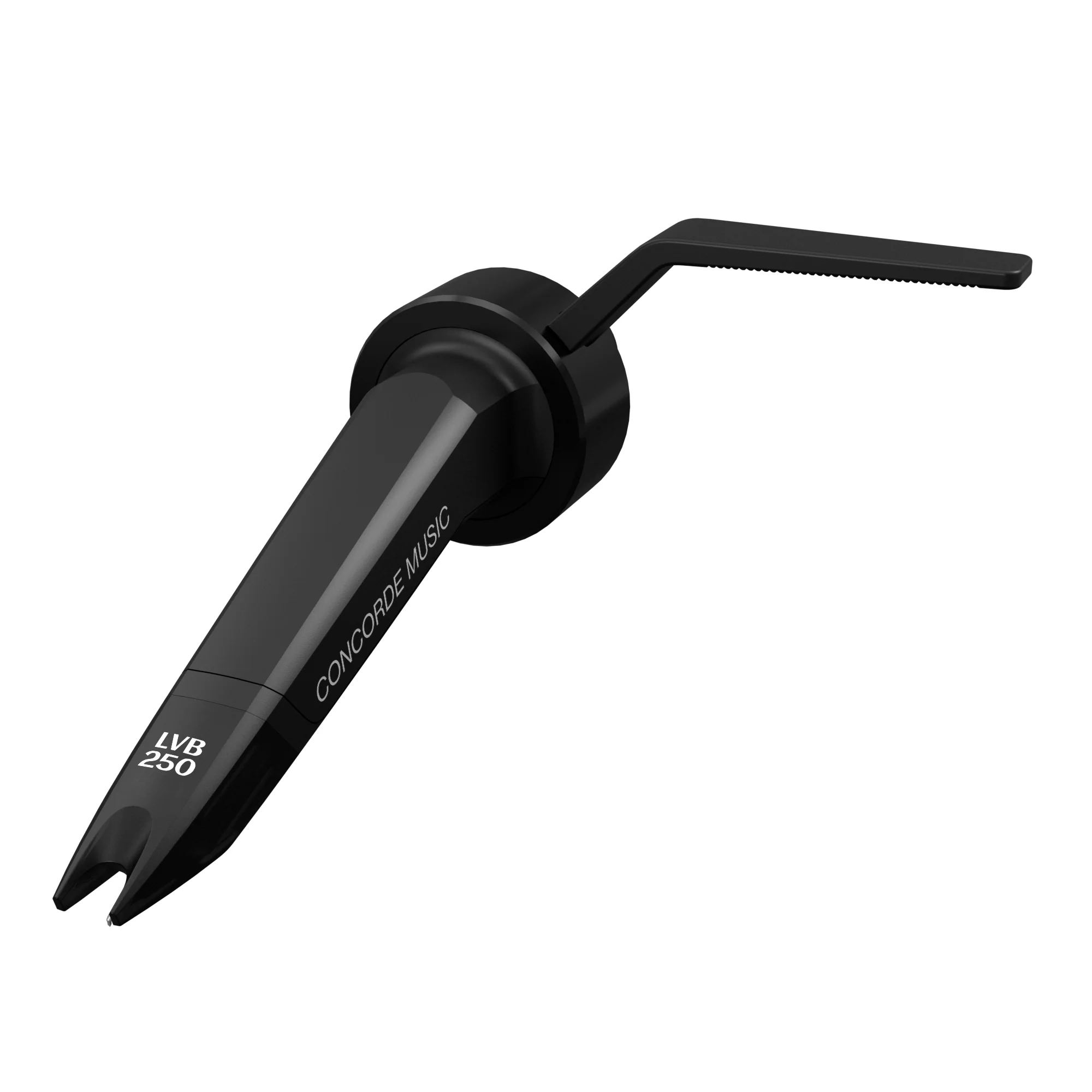

🎹 BLACK LVB 250

• cartridge type: moving magnet for hi-fi listening
• stylus shape: shibata
• stylus construction: nude diamond
• cantilever material: boron
• output voltage: 6.0 mV
• frequency response: 20 Hz - 20 kHz
• channel separation: 26 dB
• tracking force: 2.0 g
• cartridge weight: 18.0 g
• replaceable stylus: yes
• upgradeable stylus: no
