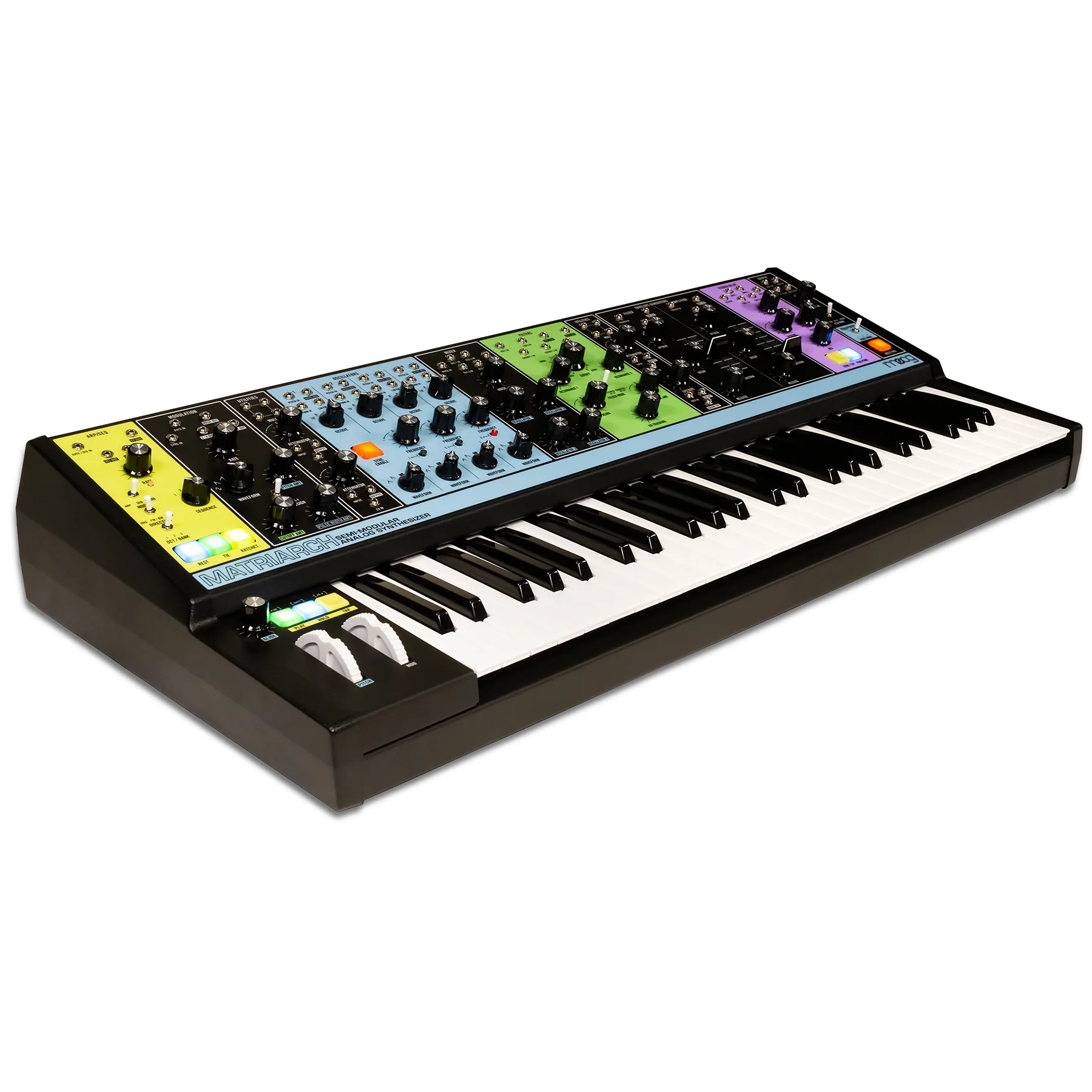

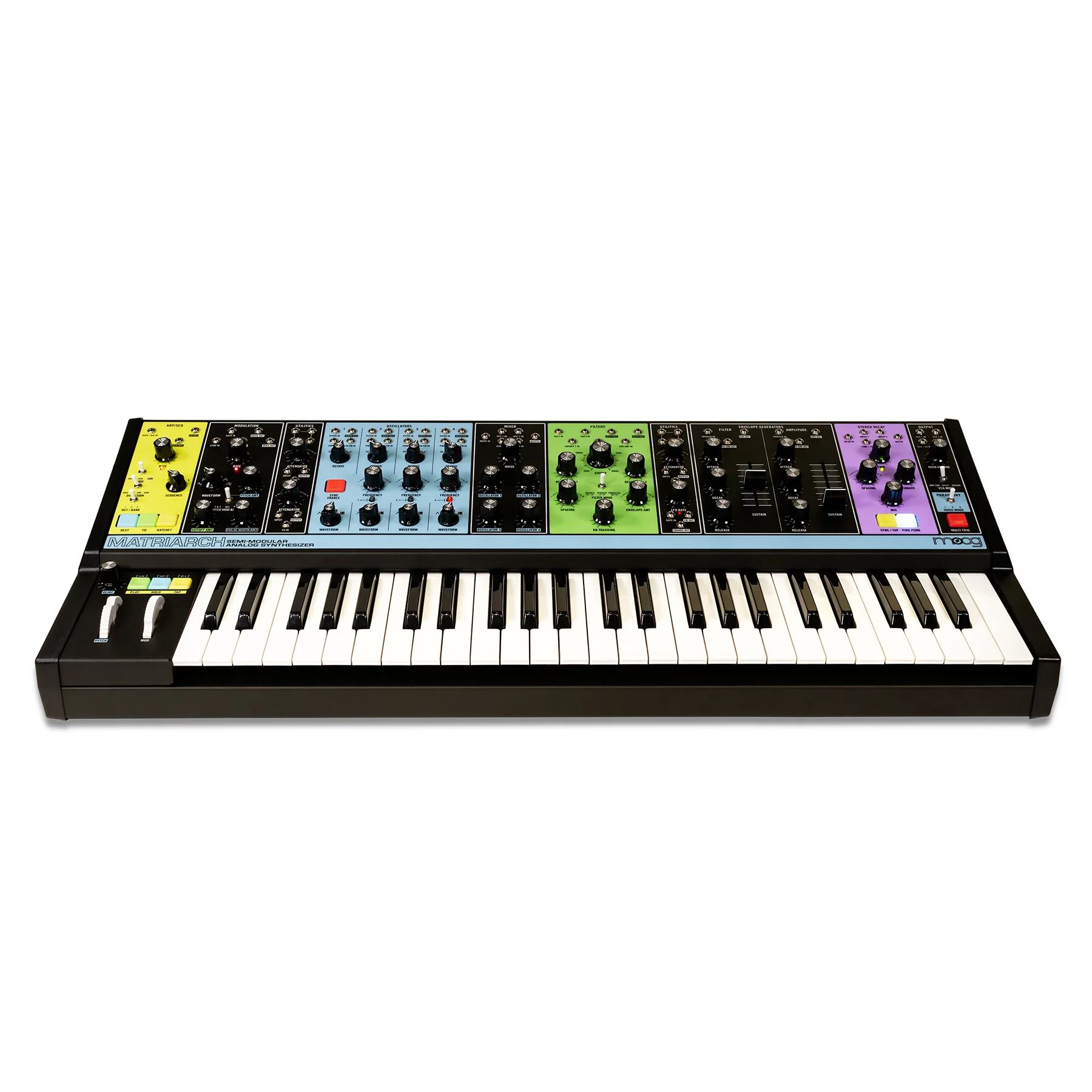

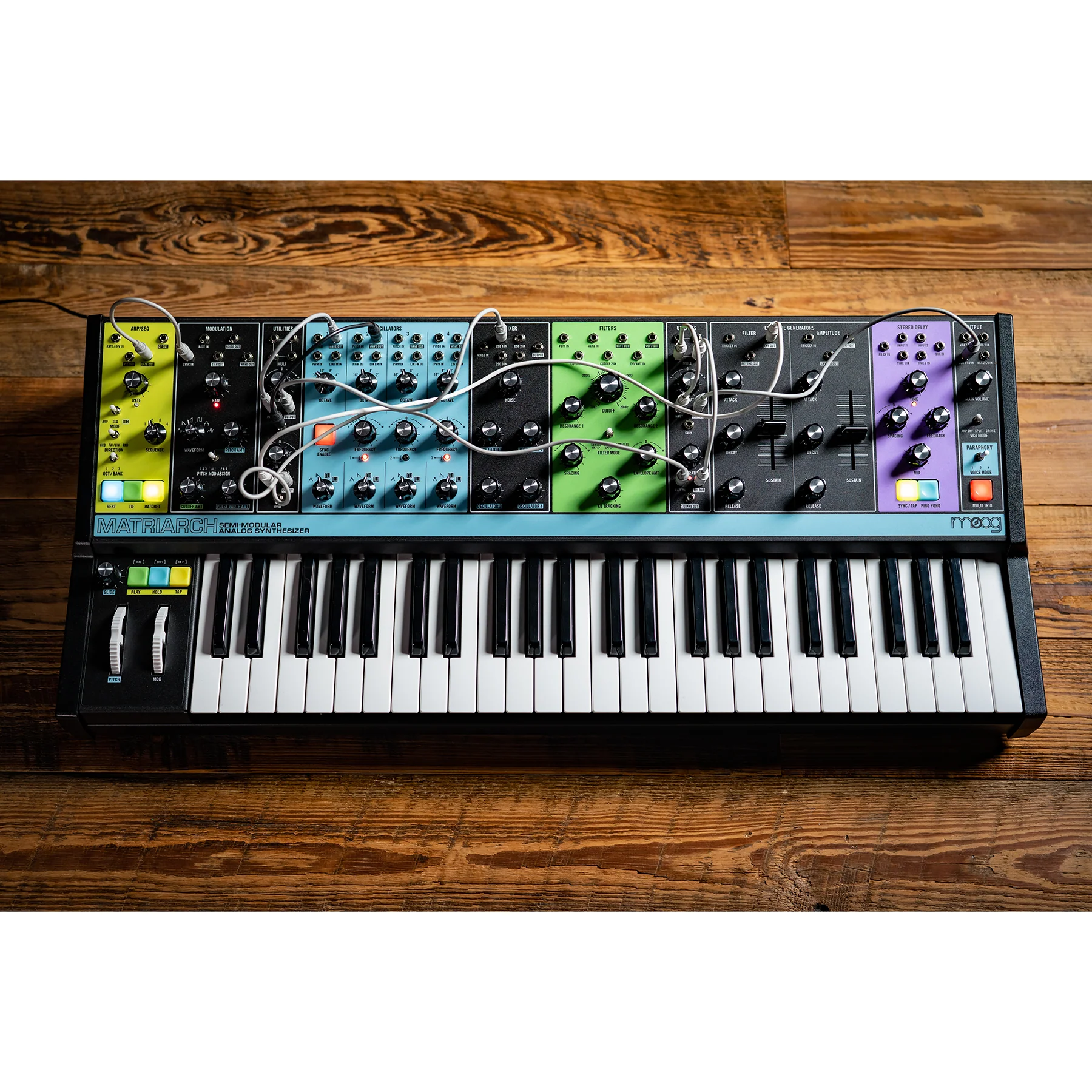

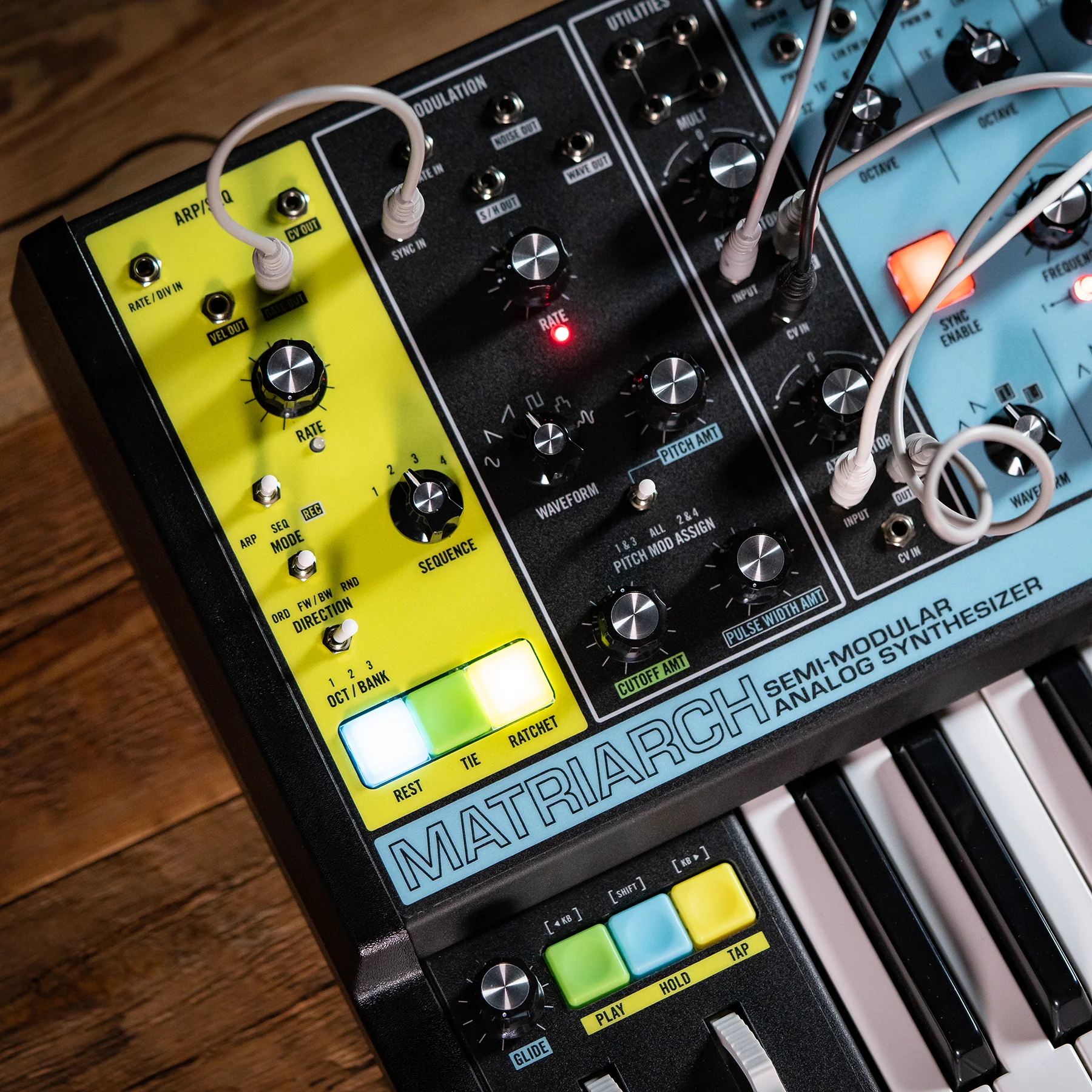

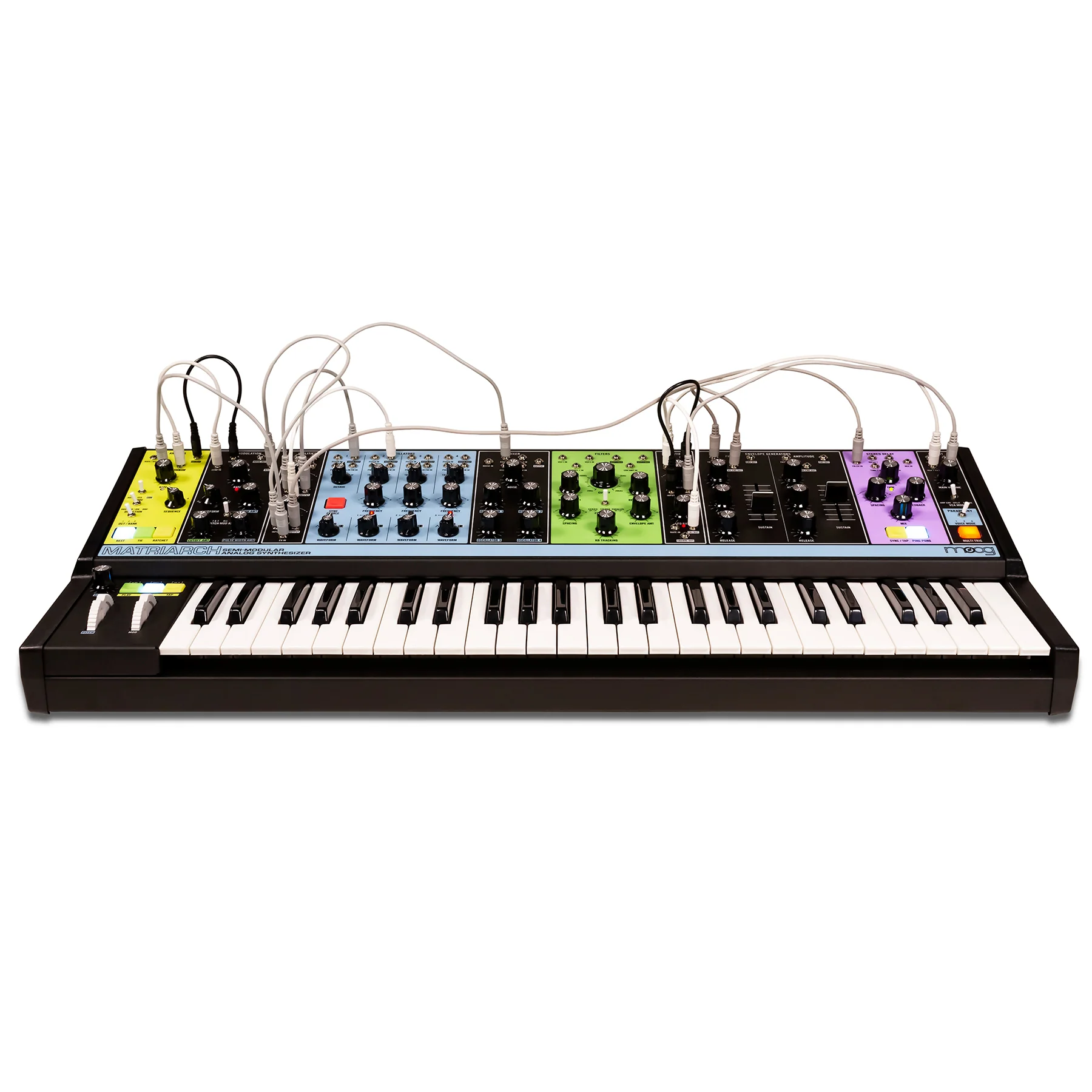

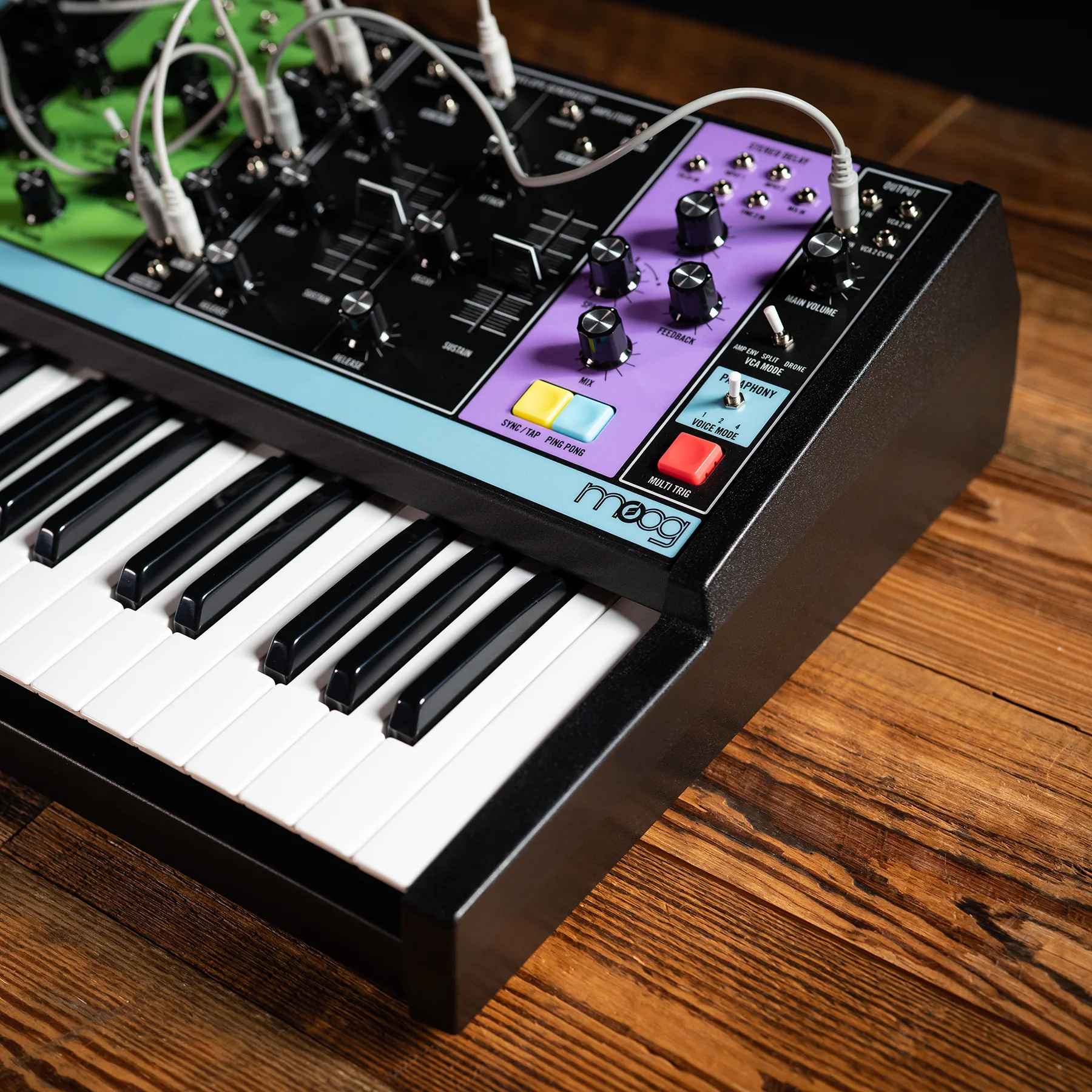

Moog: Matriarch Analog Semi-Modular Synthesizer

📌LAB POINTS

• Moog's flagship semi-modular analog synthesizer w/ built-in effects, sequencer + arpeggiator
• 100% analog circuitry based on classic Moog synthesizer modules
• 49 velocity sensitive Fatar keys w/ aftertouch; mono, duo, and 4-note paraphonic playability
• 90 modular patch points for endless sound possibilities (patching is not required to play)
• powerful sound shaping capabilities w/ 4 analog oscillators, full range LFO w/ 6 selectable waveshapes, dual analog filters (high pass/low pass), dual ADSR envelopes, dual VCA's + more
• analog stereo delay based on the MF-104M + 500 series effects
• built-in step sequencer features 256 steps w/ 4 notes per step + arpeggiator w/ selectable modes
• 1/4" external audio input for processing external sources through the Matriarch's analog circuits
• integrate w/ outboard gear via MIDI I/O, MIDI over USB
• stereo 1/4" + 1/8" Eurorack-level audio outputs for modular connectivity

"Moog Matriarch is a patchable 4-note paraphonic analog synthesizer with a built-in Sequencer, Arpeggiator, stereo Ladder Filters, and stereo Analog Delay. Create rich evolving chord patterns immediately with “no patching required”, then tap into an abundance of inspiring textures, new sounds, and an endless supply of happy accidents through Matriarch’s 90 modular patch points. Based on the vintage circuitry of classic Moog synthesizer modules, Matriarch is a catalyst for creative ideas and a medium for multidimensional expression." - Moog

🔎TECH SPECS

• sound engine: 100% analog
• polyphony: monophonic, 2-note paraphonic, and 4-note paraphonic

• other controllers: pitch bend, mod wheel, variable glide, expression pedal in

  to CV out + sustain pedal in

• sound sources: 4x analog oscillators w/ selectable waveforms (oscillators 2, 3, and

  4 support hard sync), white noise generator, external input jack
• mixer: 6 input (5 eurorack level and 1 instrument level)

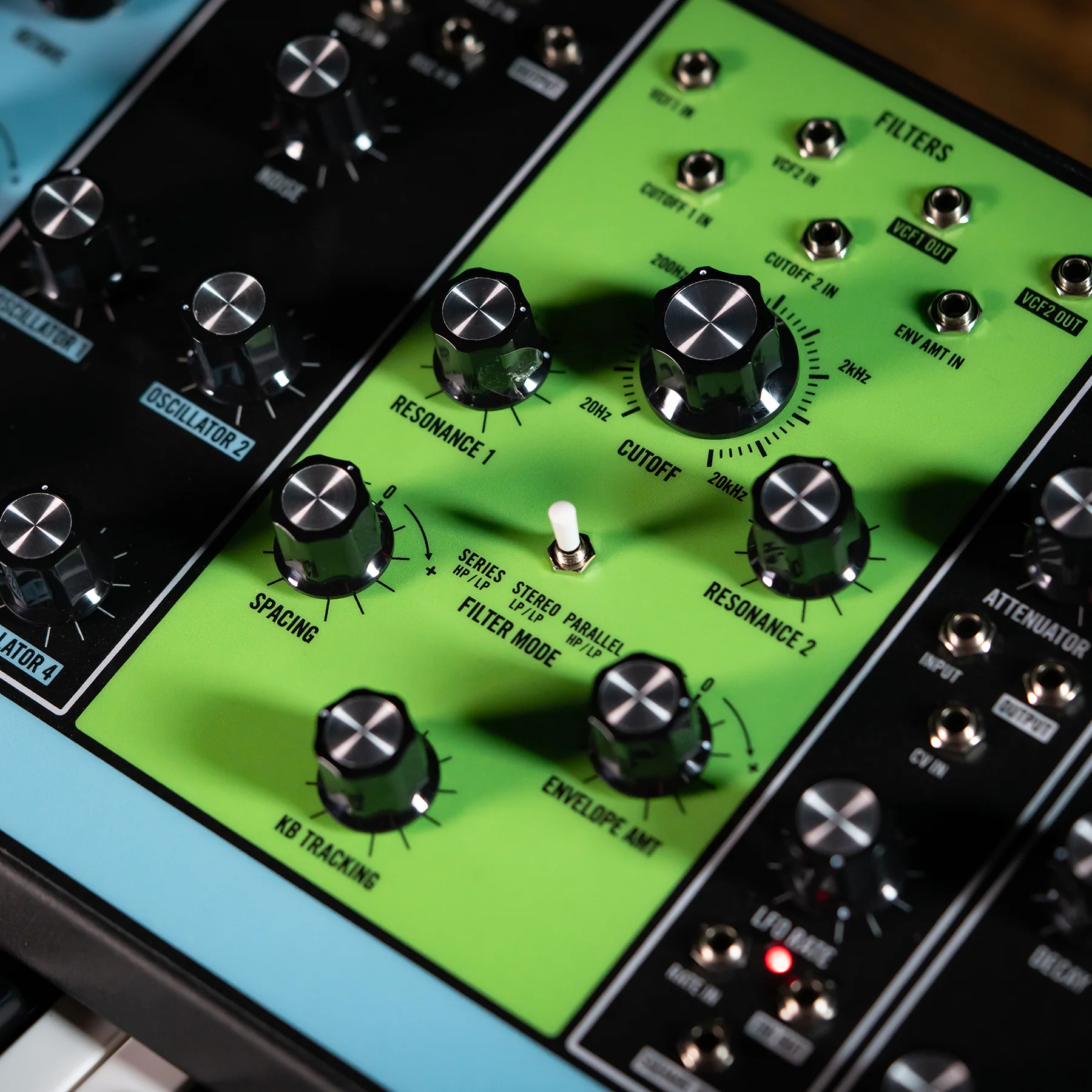

• filters: dual ladder filters - stereo, parallel, series
• mod sources: analog modulation oscillator with selectable and patchable output (Sine, Saw, Ramp, Square, Stepped Triangle, Smoothed Random, Sample and Hold, Noise)
• envelopes: 2x four stage ADSR w/ end of envelope gate outputs
• effects: stereo analog delay up to 700ms, MIDI sync-able, classic-style, Ping-pong repeat
• arpeggiator/step sequencer: 256 Steps w/ up to 4 notes per step; 12 sequence locations

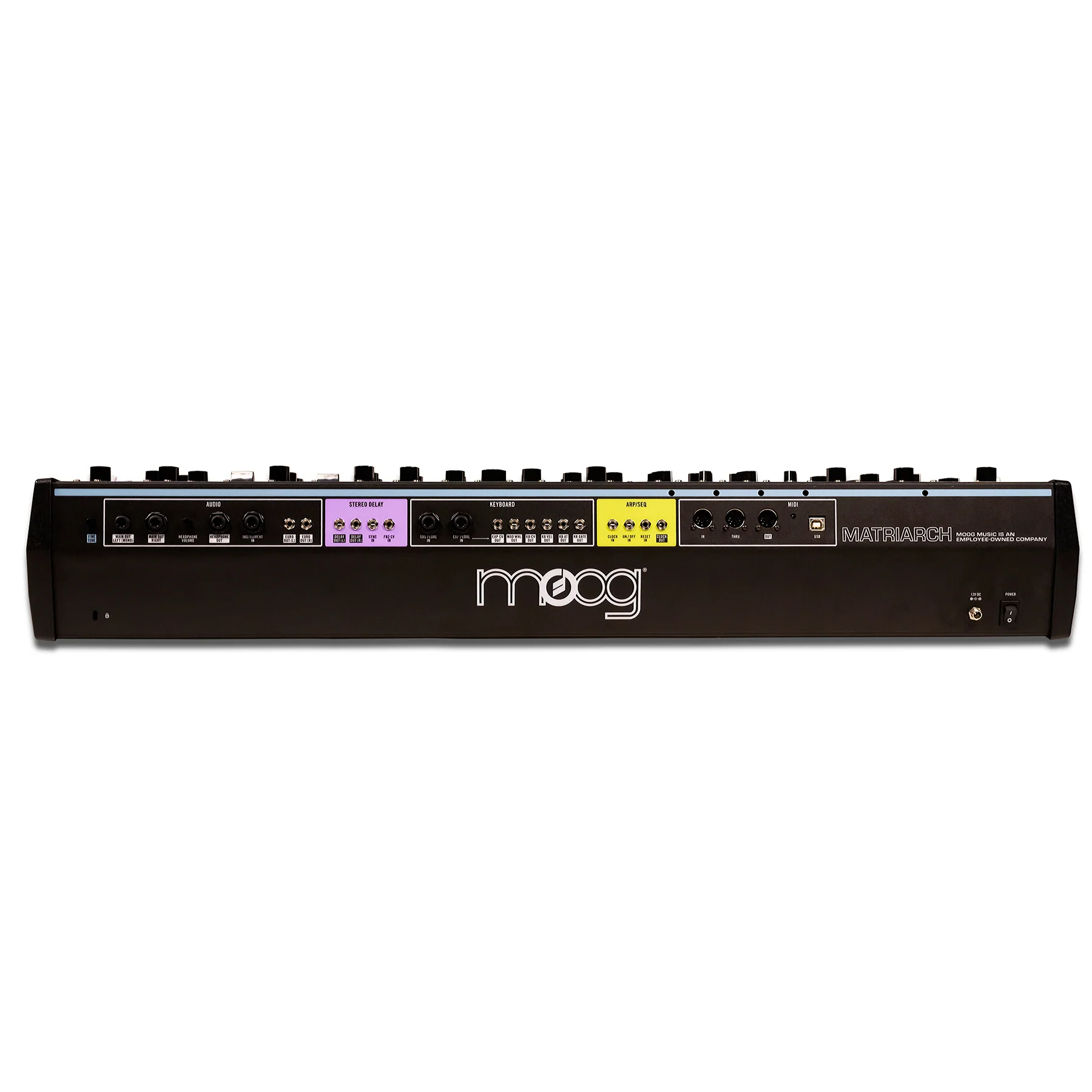

• patch points: 90 x 3.5mm front and rear panels, 49 inputs, 33 outputs
• pedal inputs: 1/4” Sustain, 1/4” Expression
• audio input: 1/4” TS jack
• audio outputs: 2x 1/4” TS jacks for line level output (Rear Panel), 1/4” Headphone jack with dedicated level knob (rear panel), 2x 3.5mm Eurorack level outputs, 2x 3.5mm Delay outputs
• MIDI: In/Out/Thru / plus MIDI over USB
• dimensions: 32" x 14" x 5.5" / 81 x 36 cm x 14cm
• weight: 24lbs. / 10.89kg

📦COMES WITH

• power supply
