Audio-Technica: AT-PEQ30 Phono Preamp

đź“ŚLAB POINTS

  • standalone phono stage for use with an existing turntable setup or as an upgrade to a turntable's built-in preamp
  • selectable moving magnet / moving coil input with fixed gain + impedance, compatible with a wide range of MM / MC cartridges
  • high-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit
  • precision components provide excellent RIAA response
  • all-metal construction enclosure provides superior isolation from radio and electronic noise interference
  • high quality build optimized for low noise and minimum distortion

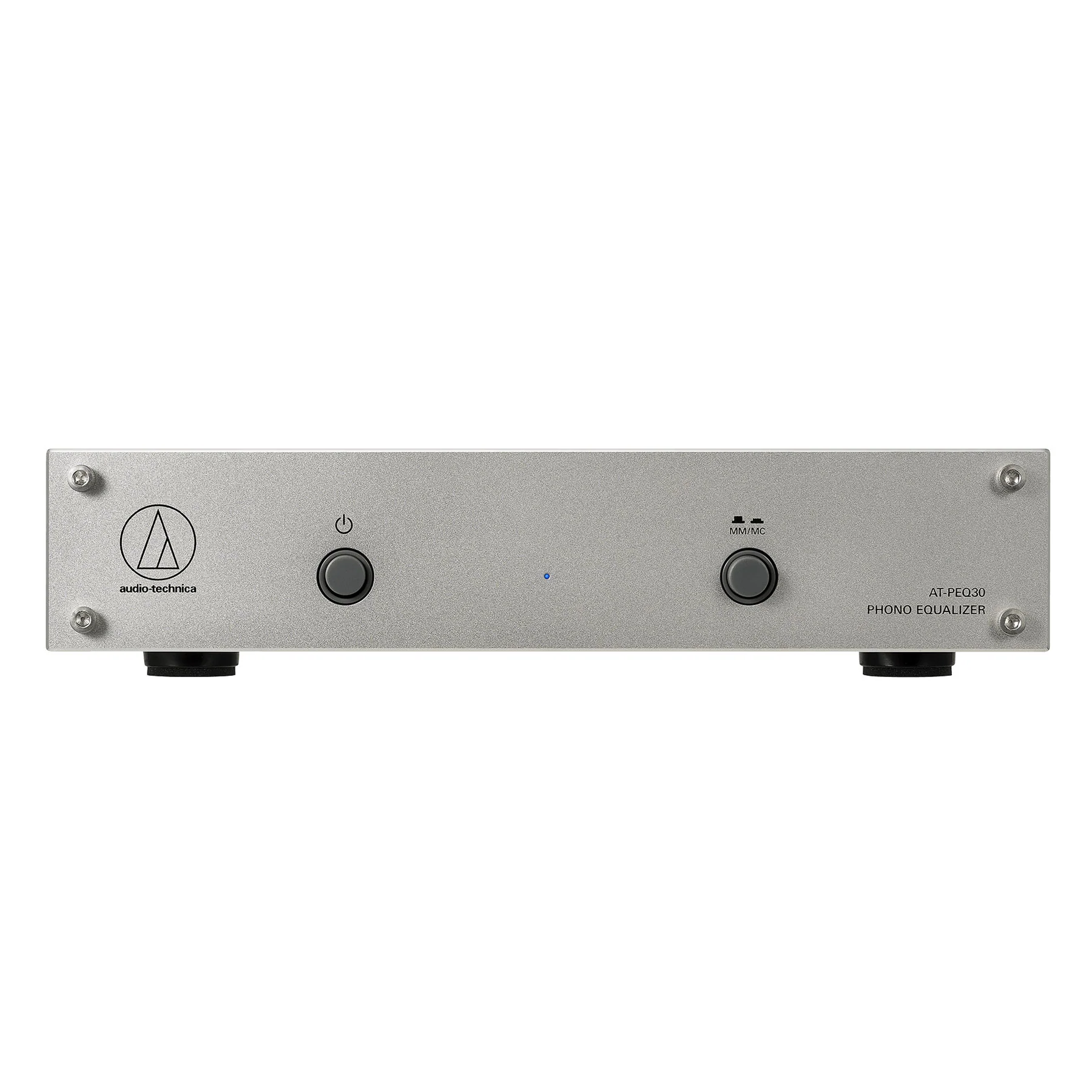

  • machined aluminum front panel
  • gold-plated input/output RCA connectors

🔎TECH SPECS

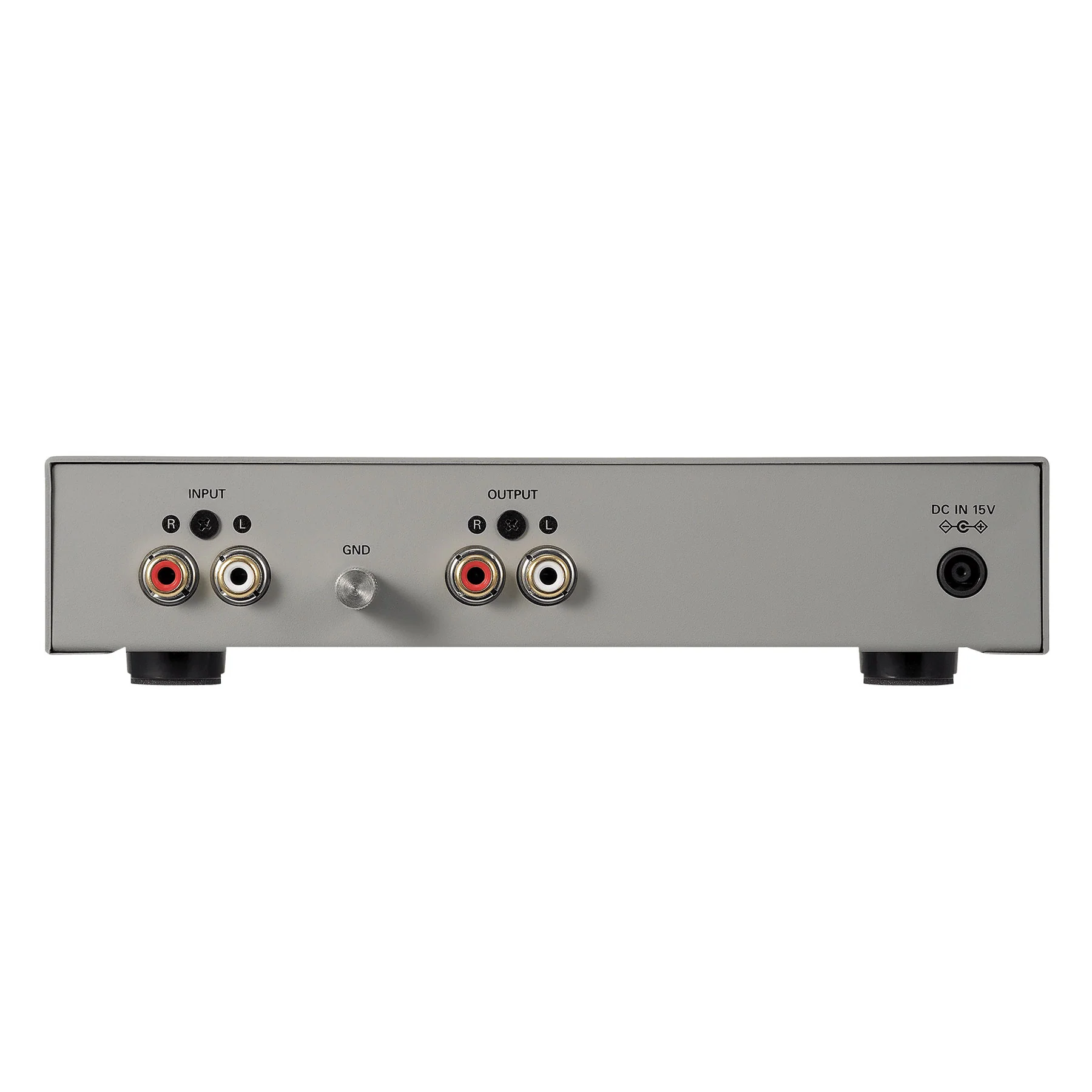

  • RCA input / RCA output w/ grounding post
  • input impedence: MM type: 47 kiloohms / MC type: 120 ohms
  • input sensitivity: MM type: 4.5 mV / MC type: 0.28 mV
  • rated output: MM type: 250 mV / MC type: 250 mV
  • gain: MM type: 35 dB / MC type: 59 dB
  • signal-to-noise ratio: MM type: 100 dB / MC type: 74 dB
  • power supply: DC 15 V, 1.2 A
  • weight: 1.96 lbs / 0.89 kg
  • dimensions: 1.85" x 7.78" x 4.94" / 47 x 197.5 x 125.5mm

📦COMES WITH

  • power supply
$83.70

Original: $279.00

-70%
Audio-Technica: AT-PEQ30 Phono Preamp—

$279.00

$83.70

Product Information

Shipping & Returns

Description

đź“ŚLAB POINTS

  • standalone phono stage for use with an existing turntable setup or as an upgrade to a turntable's built-in preamp
  • selectable moving magnet / moving coil input with fixed gain + impedance, compatible with a wide range of MM / MC cartridges
  • high-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit
  • precision components provide excellent RIAA response
  • all-metal construction enclosure provides superior isolation from radio and electronic noise interference
  • high quality build optimized for low noise and minimum distortion
  • machined aluminum front panel
  • gold-plated input/output RCA connectors

🔎TECH SPECS

  • RCA input / RCA output w/ grounding post
  • input impedence: MM type: 47 kiloohms / MC type: 120 ohms
  • input sensitivity: MM type: 4.5 mV / MC type: 0.28 mV
  • rated output: MM type: 250 mV / MC type: 250 mV
  • gain: MM type: 35 dB / MC type: 59 dB
  • signal-to-noise ratio: MM type: 100 dB / MC type: 74 dB
  • power supply: DC 15 V, 1.2 A
  • weight: 1.96 lbs / 0.89 kg
  • dimensions: 1.85" x 7.78" x 4.94" / 47 x 197.5 x 125.5mm

📦COMES WITH

  • power supply
